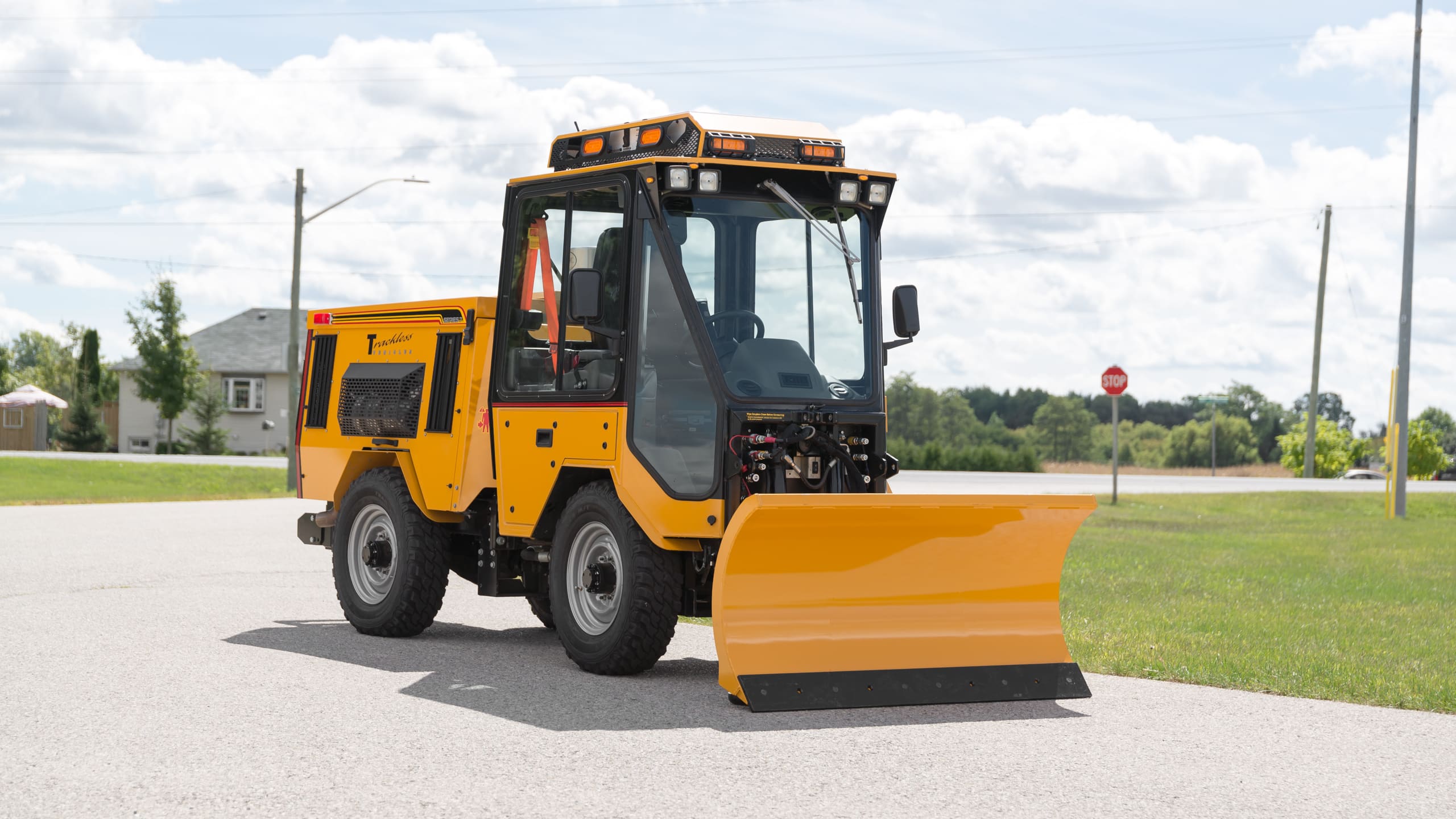

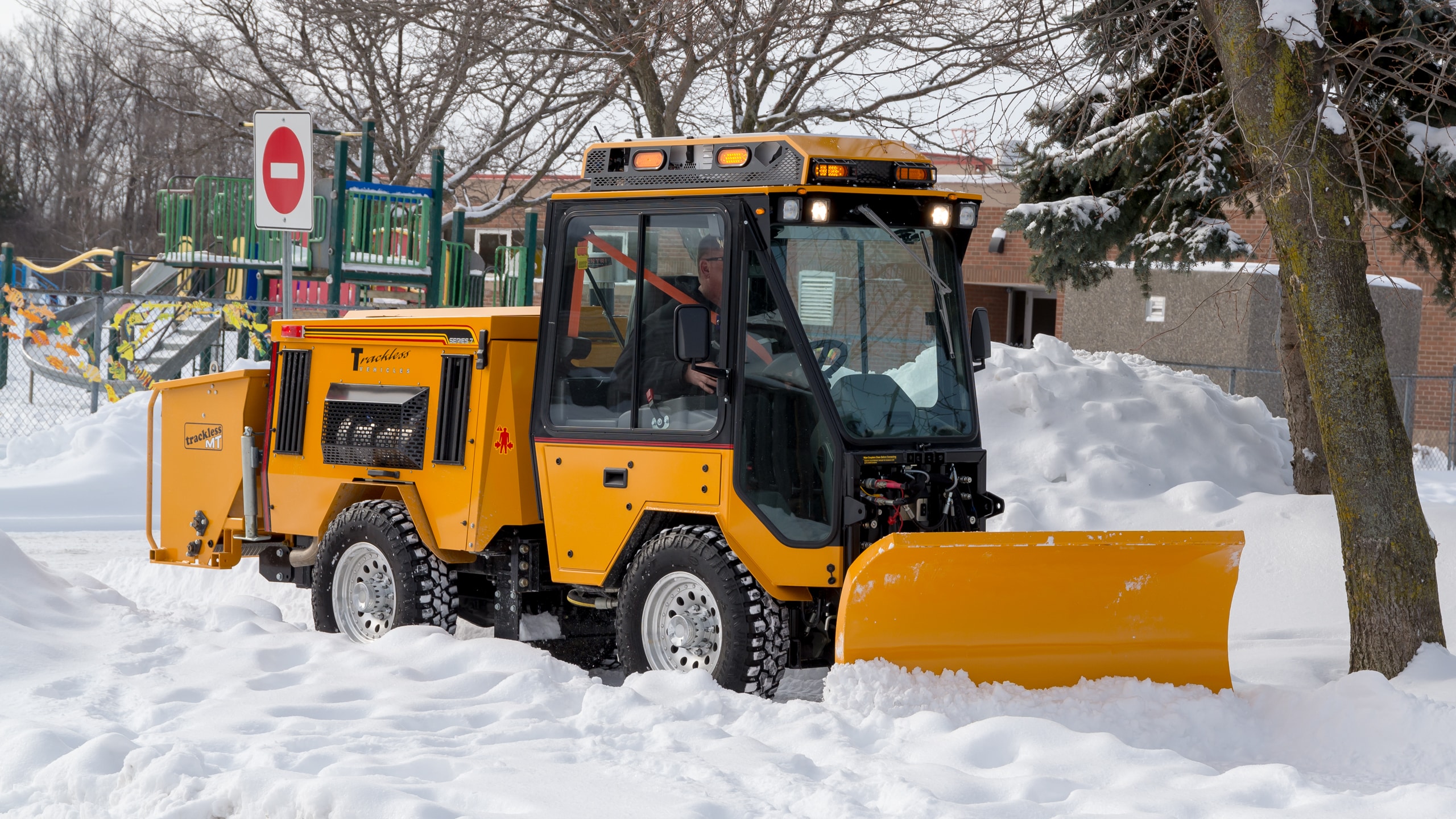

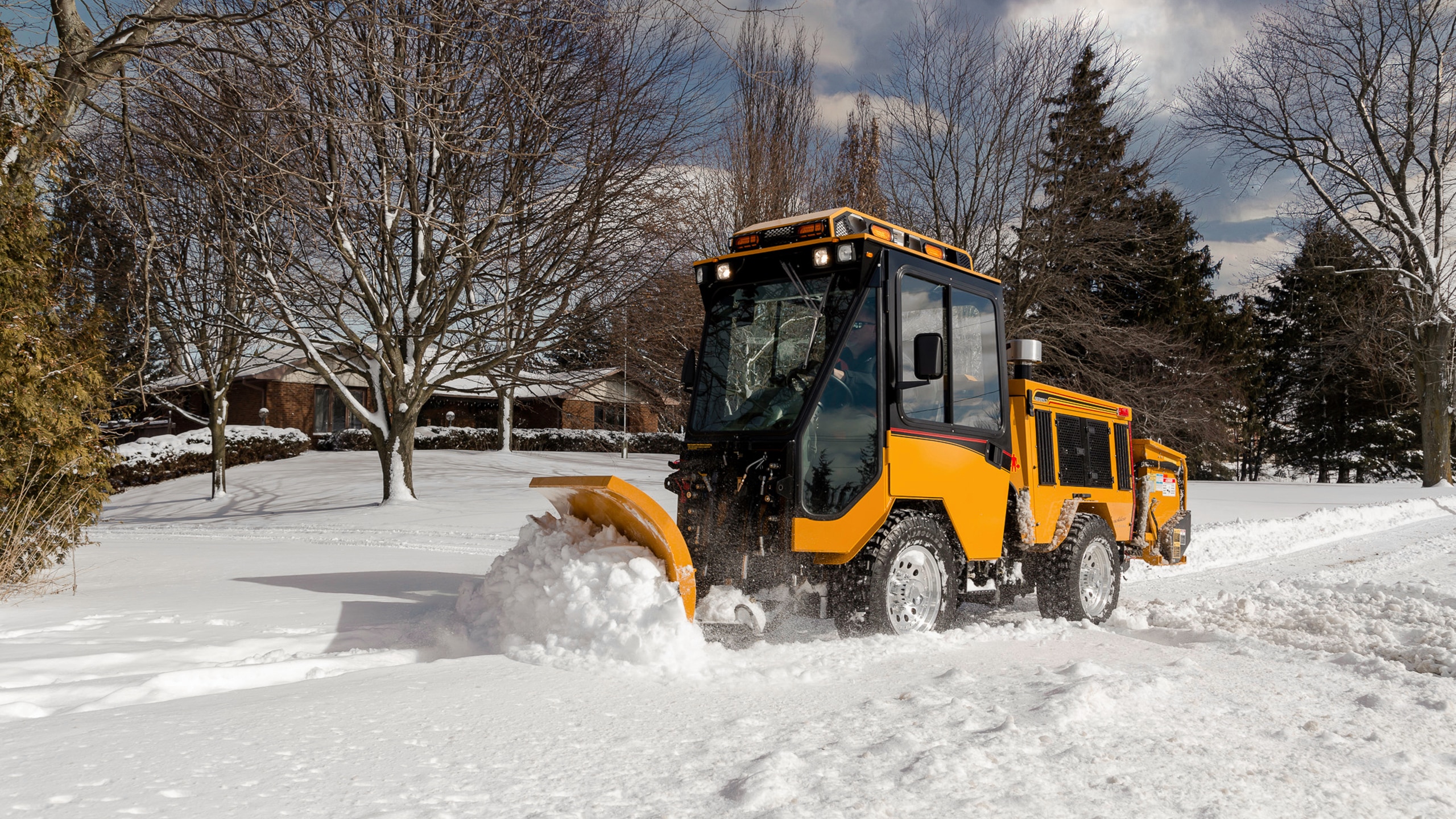

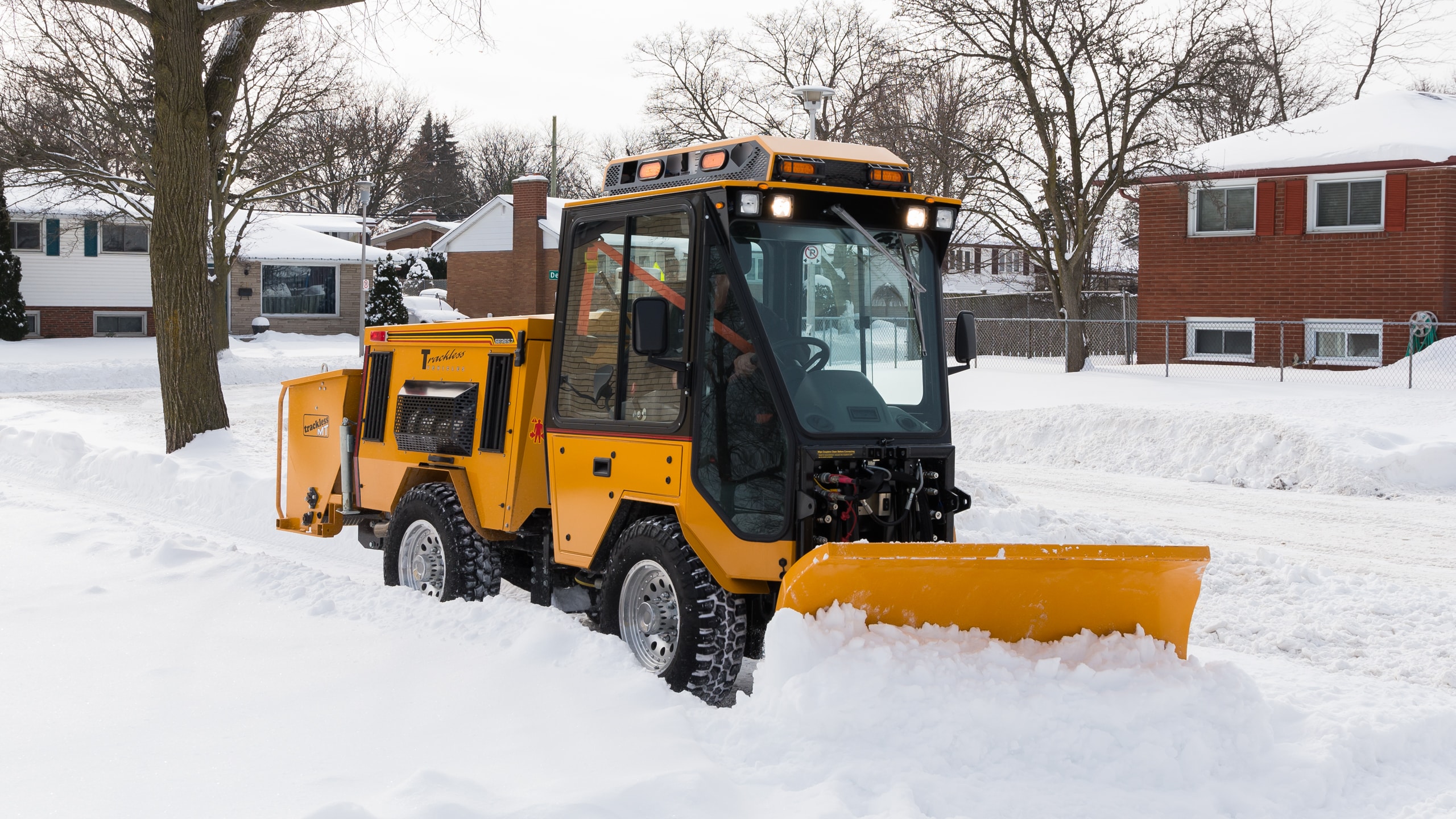

An Angle Snowplow is the most cost-efficient snow moving attachment you can mount on your Trackless MT. Nothing beats the economical performance and durability of a straight blade. However, we take the simplicity of a straight blade and make it even better.
Available in four widths; 5′, 6′, 7′ and 8′, our blade skins are made from 3/16” hot-rolled steel and reinforced with 3/8” thick steel ribs. The blade is angled hydraulically from inside the cab of the MT and being a full trip-type plow, tips forward to ride up and over obstructions. We add abrasion resistant skid shoes and reversible, hardened steel cutting edges which add to the longevity of the attachment.
Plow Tripping
Click to enlarge
The Angle Plow is designed to be able to trip. It is a full trip-type plow where the blade tips forward and rides up over the obstruction.
- Related Attachments
- Fixed V-Plow
- Double Trip Plow
- 5 Position Folding V-Plow
- Front-Mount Spreader & Plow
- Rear Spreader
Specifications
| Blade Angling | 30° left or right by hydraulics |
| Cutting Edge | ½” x 6″ hardened |
| Skid Shoes | 2 adjustable |
| Cylinders | 2 single acting with cushion valve |
| Trip | Full blade trip, returns to upright position when blade assembly raised |
Weights & Dimensions
| Model | Length | Width | Height | Weight |
| 5′ Angle Snowplow | 48″ 1219mm |
60″ 1524mm |
30″ 762mm |
350lbs 158kg |
| 6′ Angle Snowplow | 48″ 1219mm |
72″ 1828mm |
30″ 762mm |
450lbs 204kg |
| 7′ Angle Snowplow | 48″ 1219mm |
84″ 2133mm |
30″ 762mm |
550lbs 249kg |
| 8′ Angle Snowplow | 48″ 1219mm |
96″ 2438mm |
30″ 762mm |
650lbs 294kg |
*Measurements are approximate.*
*For detailed tender specifications, contact Trackless Vehicles sales department.*
