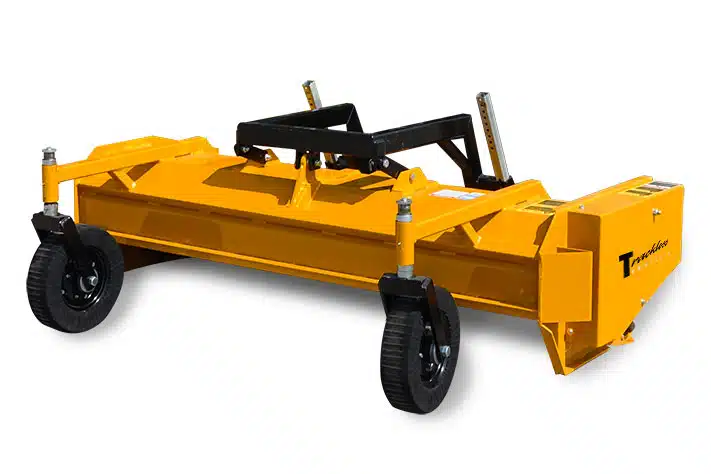

The Trackless Front Flail Mower was designed to cut heavier grass, weeds, scrub and light brush where a standard rotary lawn mower can not cope. An enclosed mower housing and rubber safety skirt keeps the cut grass, mulch and other debris within the cutting chamber and allows for safe mowing near roads, parks and other busy or populated areas.
Large front gauge wheels, a full-width gauge roller and a unique push-frame design give the mower front-to-rear flexibility of 10 degrees, allowing the attachment to tip forwards or back, following the contour of the terrain. This design is superior to the standard 3-point hitch type mount, where the mower can only travel straight up and down, leaving an uncut area when driving over a knoll or divot.
The design of the Front Flail Mower attaching system also provides 13 degrees of side-to-side flexibility. The heavy-duty, PTO-driven rotor shaft has thirty-three 2 3/4″ wide hanging cup knives; the knives can be re-sharpened without being removed. Anti-wrap shields protect the bearings on the rotor and gauge roller.
The Front Flail Mower weighs 1100 pounds. The cutting width of the attachment is 74″. The rotor tube is 4″ diameter, and includes ¼” wall drawn over mandrel (DOM) tubing with a 1 7/16″ through shaft.
The mower is PTO driven with the final drive by way of two V belts and a spring-loaded idler. The two caster wheels are 16″ x 4″ with flat-free laminated tires.
|Cutting Width||74″ (1880mm)|
|Cutting Height||1″ to 4″ (25mm to 102mm)|
|Gauge Wheels||2 -16″ x 4″ Laminated|
|Gauge Roller||6″ diameter steel, full width|
|Rotor Tube||4″ diameter with 1-7/16” shaft|
|Blades||33 – 2¾” wide (can be resharpened)|
|Blade and Rotor Cutting Diameter||18″|
|Drive||PTO, gear box, cross shaft, 2 V-belts with spring-loaded idler pulley|
|Rear Deflector||Reinforced rubber|
|Linkage||Flexible for uneven ground|
|Rotor Speed @ 540 PTO||1,780 r.p.m|
|Blade Tip Speed @ 540 PTO||8,380 ft./min|
Weights & Dimensions
|Front-Mount Flail Mower||72″
*Measurements are approximate.*
*For detailed tender specifications, contact Trackless Vehicles sales department.*
