Pickup Sweeper

Home/Products/Pickup Sweeper
Pickup SweeperTristan Balint2022-10-11T10:49:11-04:00
  • Photos

  • Video

  • 3D Spin

  • Downloads

  • Photos

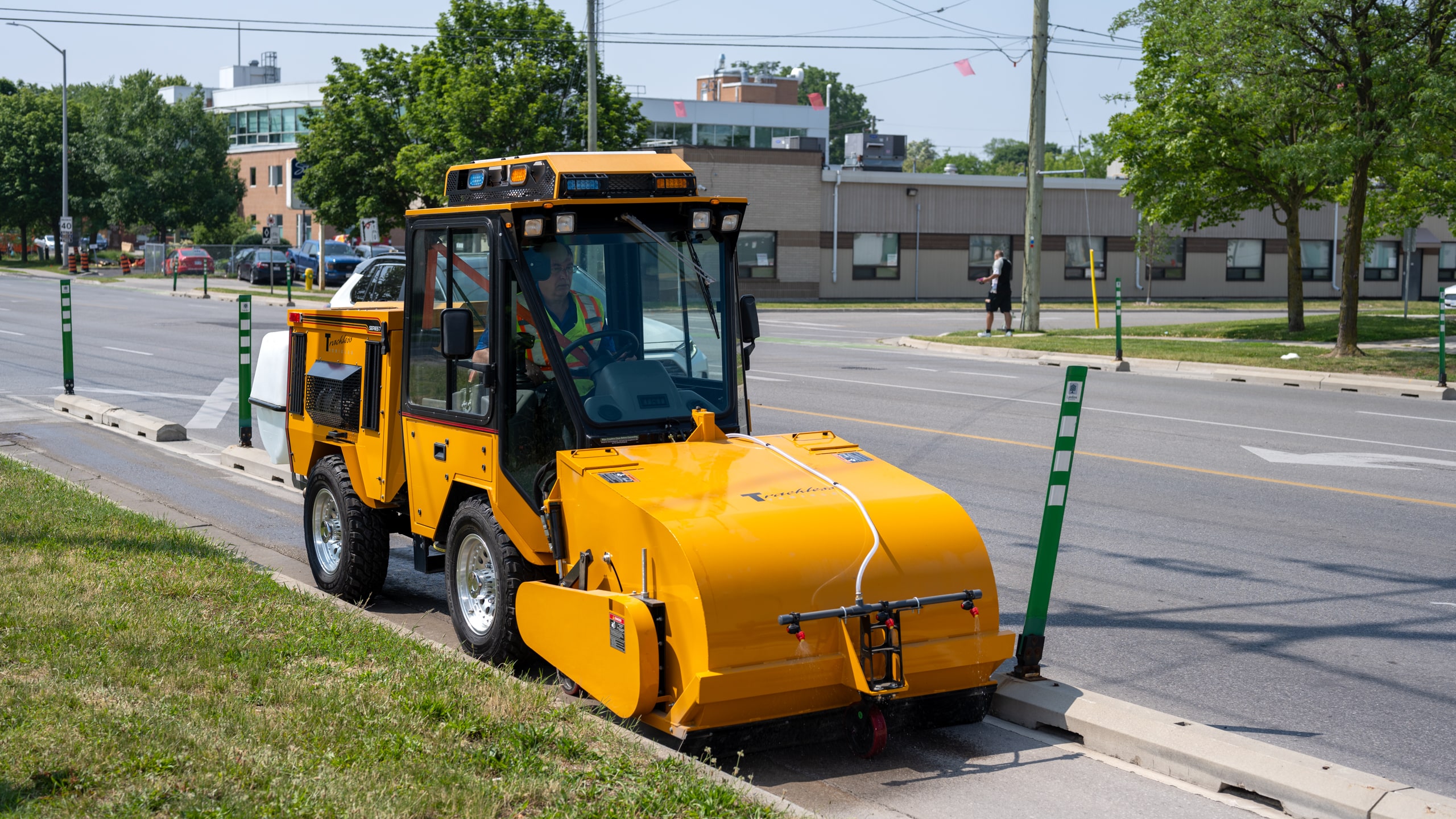

  • trackless vehicles pickup sweeper attachment on sidewalk municipal tractor working in lot side view
  • trackless vehicles pickup sweeper attachment on sidewalk municipal tractor side view
  • trackless vehicles pickup sweeper attachment on sidewalk municipal tractor side view
  • trackless vehicles pickup sweeper attachment on sidewalk municipal tractor side view

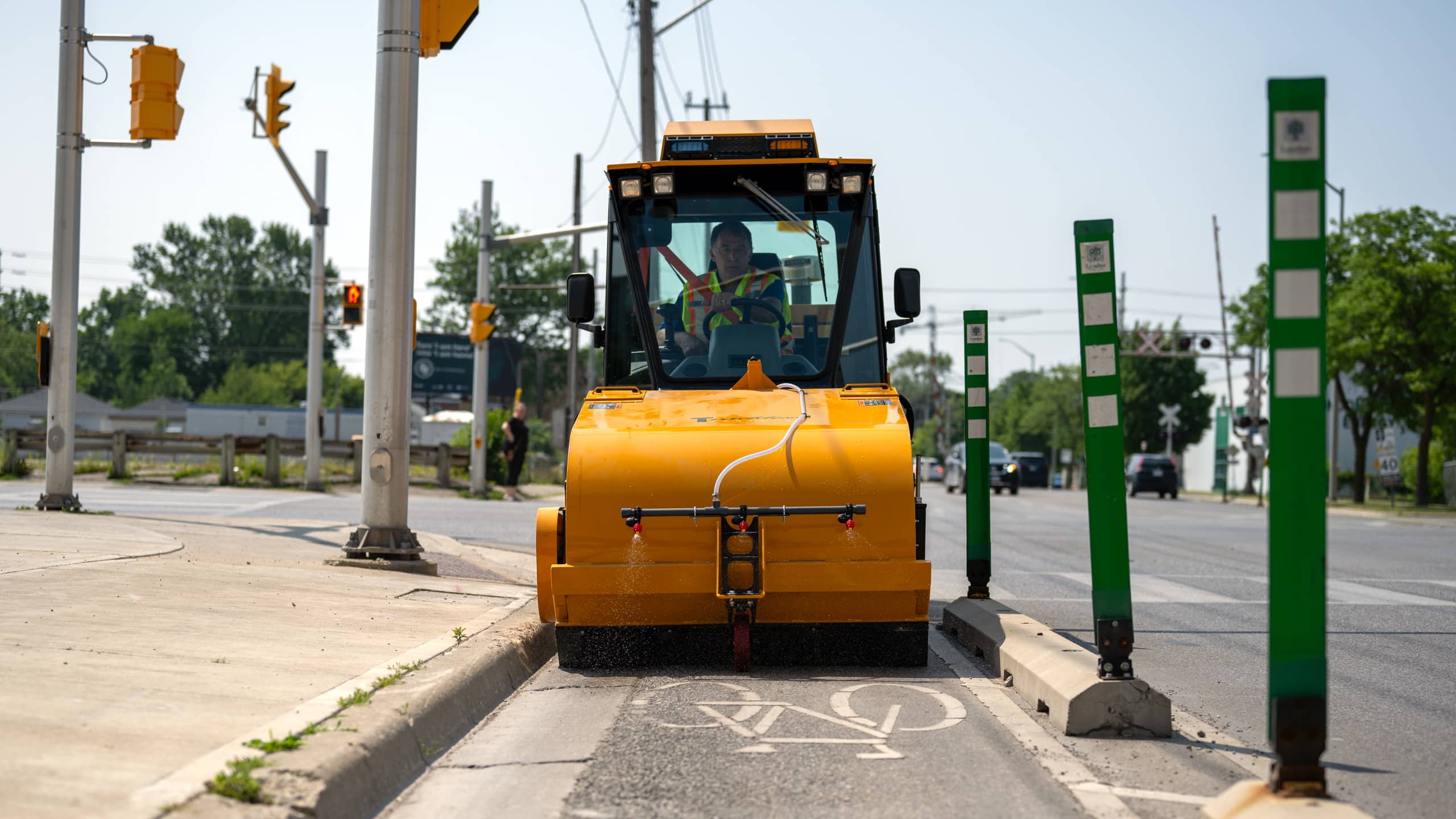

  • trackless vehicles pickup sweeper attachment on sidewalk municipal tractor working on sidewalk
  • [/fusion_image]
  • trackless vehicles pickup sweeper attachment on sidewalk municipal tractor working on sidewalk
  • Video

  • 3D Spin

  • Downloads

Literature
Pickup Sweeper Flyer
Specifications
Pickup Sweeper Specs – English
Pickup Sweeper Specs – French
Manuals
Manual & Parts Book

  • Overview

  • Technical

  • Options

  • Overview

The winter battle can leave a considerable accumulation of sand and other debris on sidewalks. The Trackless Pickup Sweeper is the ideal attachment for your sidewalk spring clean up.

The sweeper is driven for one or more blocks collecting any debris in its path and then emptied by a hydraulically controlled bottom gate. Rubber skirting on the sides and front eliminate much of the dust however, best results are obtained by adding the optional spray bar kit and rear-mounted Water Tank.

Related Attachments
Power Angle Sweepers
Watering Arm
Water Tanks
Cold Planer
  • Technical

Specifications
Sweeping Width 4′ (1219mm)
Broom Diameter 32″ (812mm)
Casters 3 swivel casters, hard urethane tires
Dump Bottom gate, hydraulic controlled
Drive PTO to gearbox, shaft to right side, 60 chain to broom sprocket
Capacity Approximately 6 cubic feet
Weights & Dimensions
Model Length Width Height Weight
Pickup Sweeper 84″
2133mm
57″
1447mm
45½”
1155mm
1158lbs
525kg

*Measurements are approximate.*
*For detailed tender specifications, contact Trackless Vehicles sales department.*

  • Options


Water Tank & Pump Kit
Click to enlarge
Water Tank & Pump Kit

Add a Spraying System to your Trackless MT to control the dust that can become airborne when using sweepers or cold planer attachments.


Spray Bar Kit for Pickup Sweeper
Click to enlarge
Spray Bar Kit for Pickup Sweeper

Attaching just above the front caster wheel, this spray bar will help your Pickup Sweeper pick up more debris by wetting it down before it enters the hopper body.
