Winter can take a toll on sidewalks creating uneven surfaces which makes plowing snow difficult. The Double Trip Sidewalk Plow was built for municipalities that have a significant number of toe trips resulting in constant plow tripping. The double trip system trips the mouldboard 35° and the cutting edge 40° which protects both the plow and the MT from damage when obstacles are encountered.

Built for the toughest environments, adjustable trip springs allow you to modify the trip-edge tension to the specific job. High strength stress-proof steel pivot pins and abrasion resistant steel plate skid shoes provide excellent wear resistance.

Plow Tripping

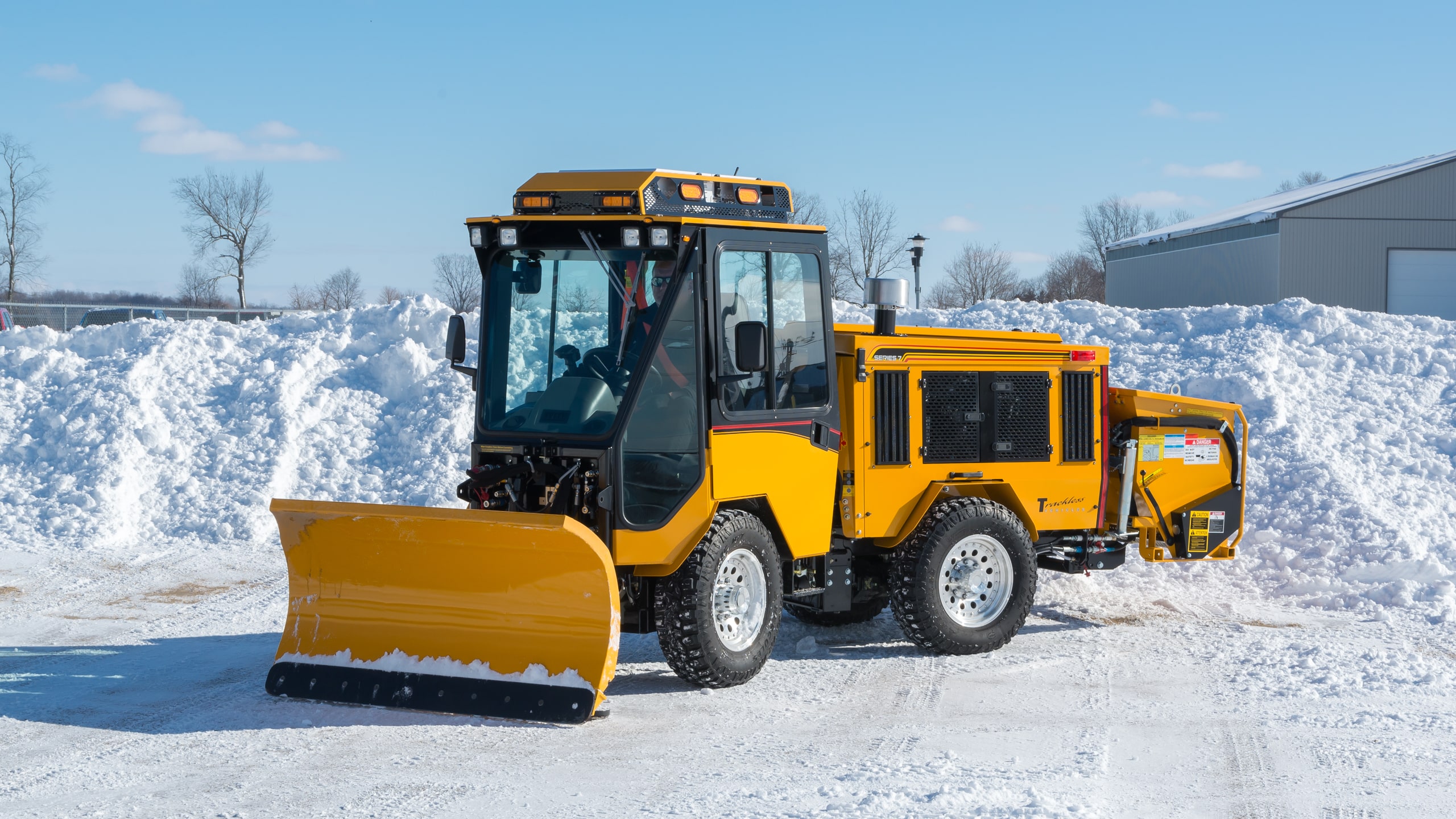

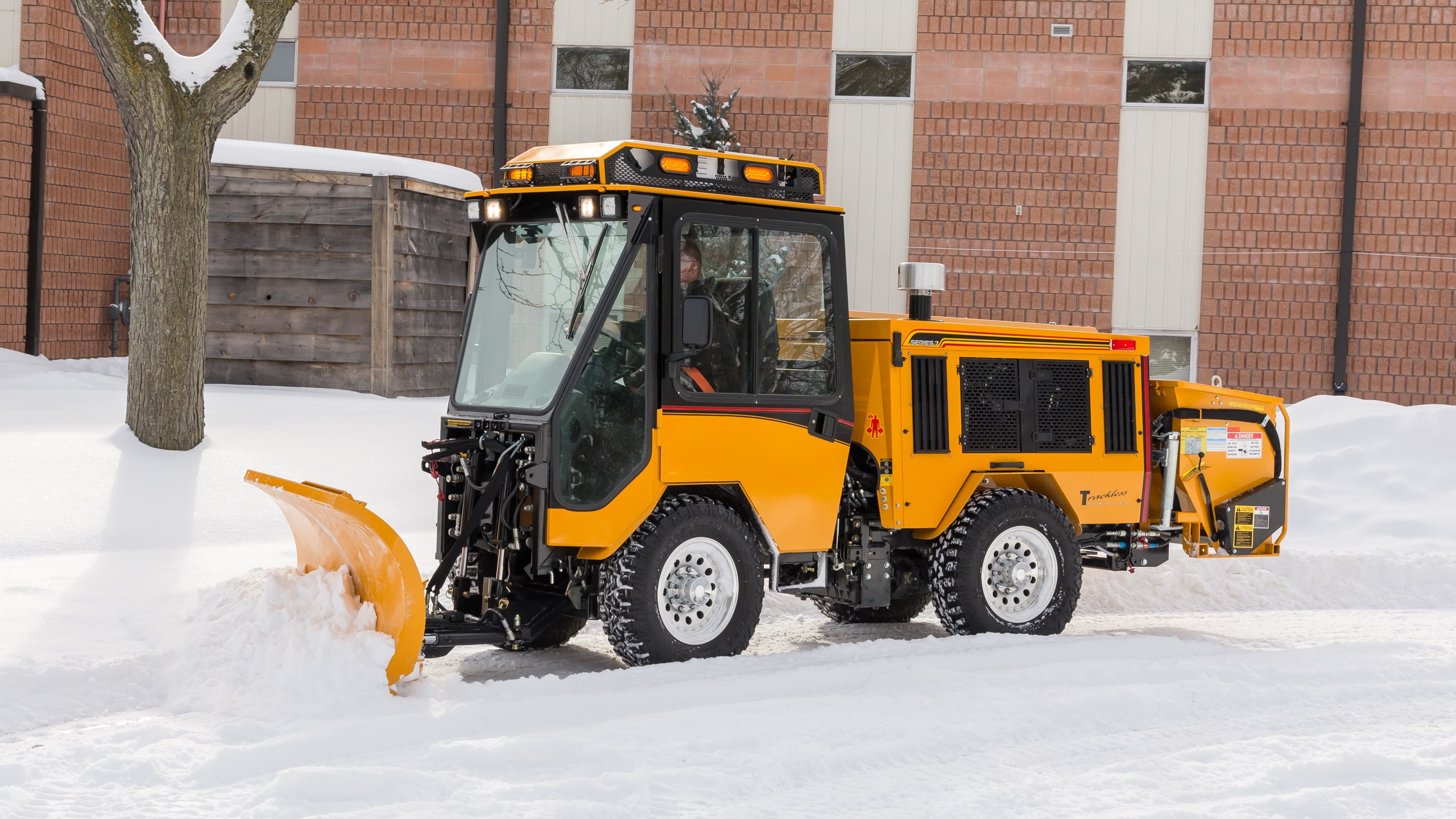

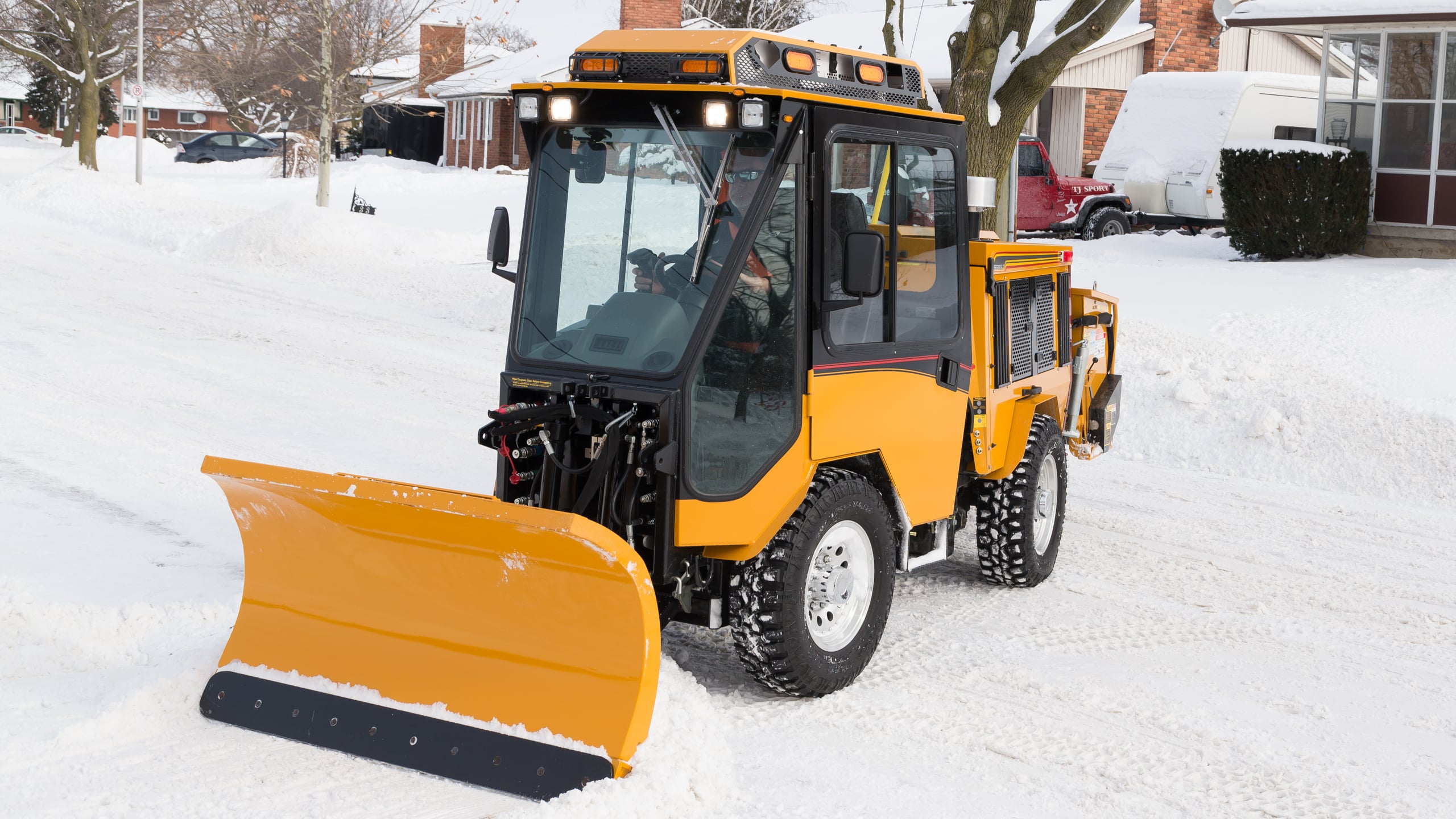

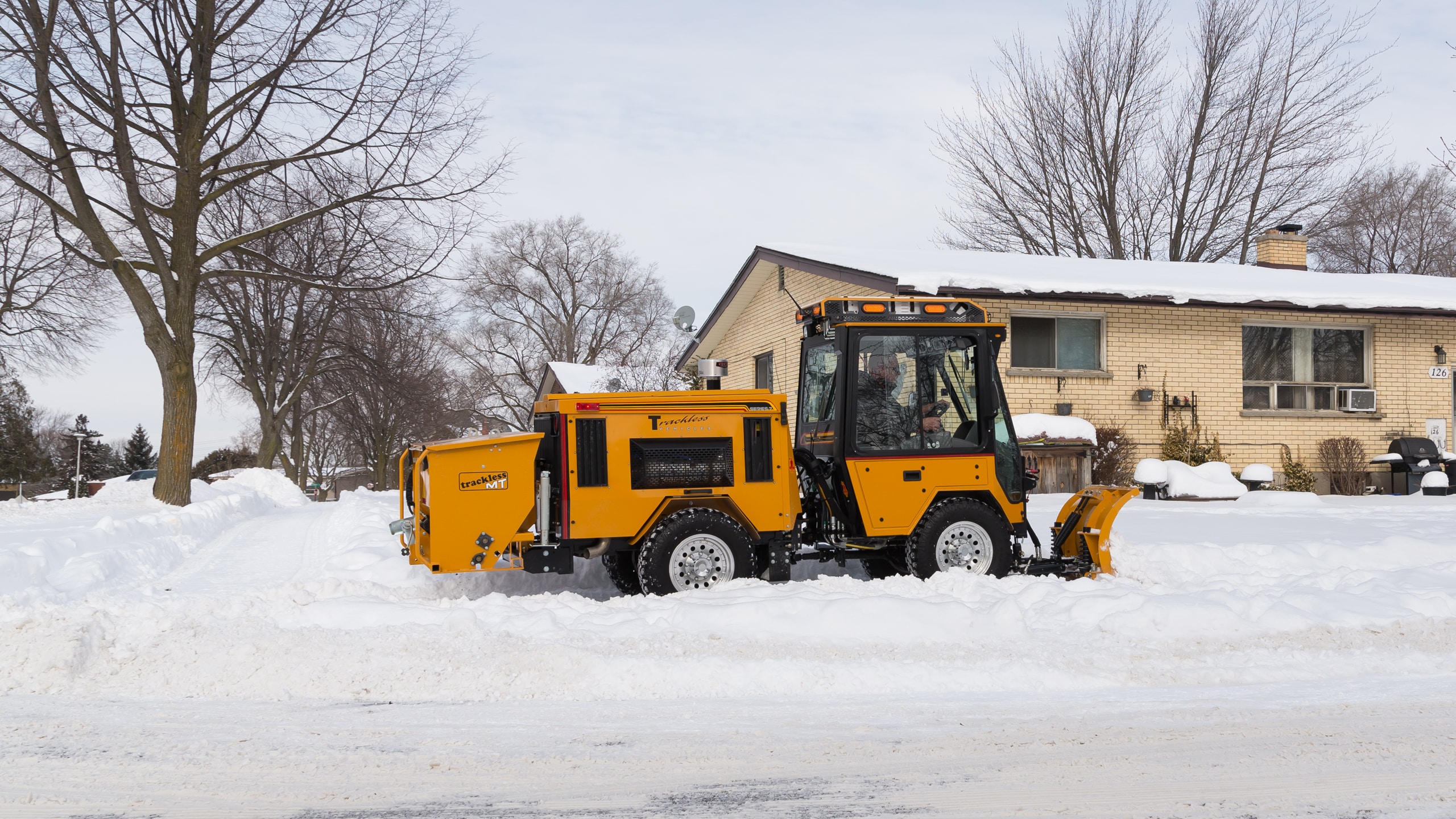

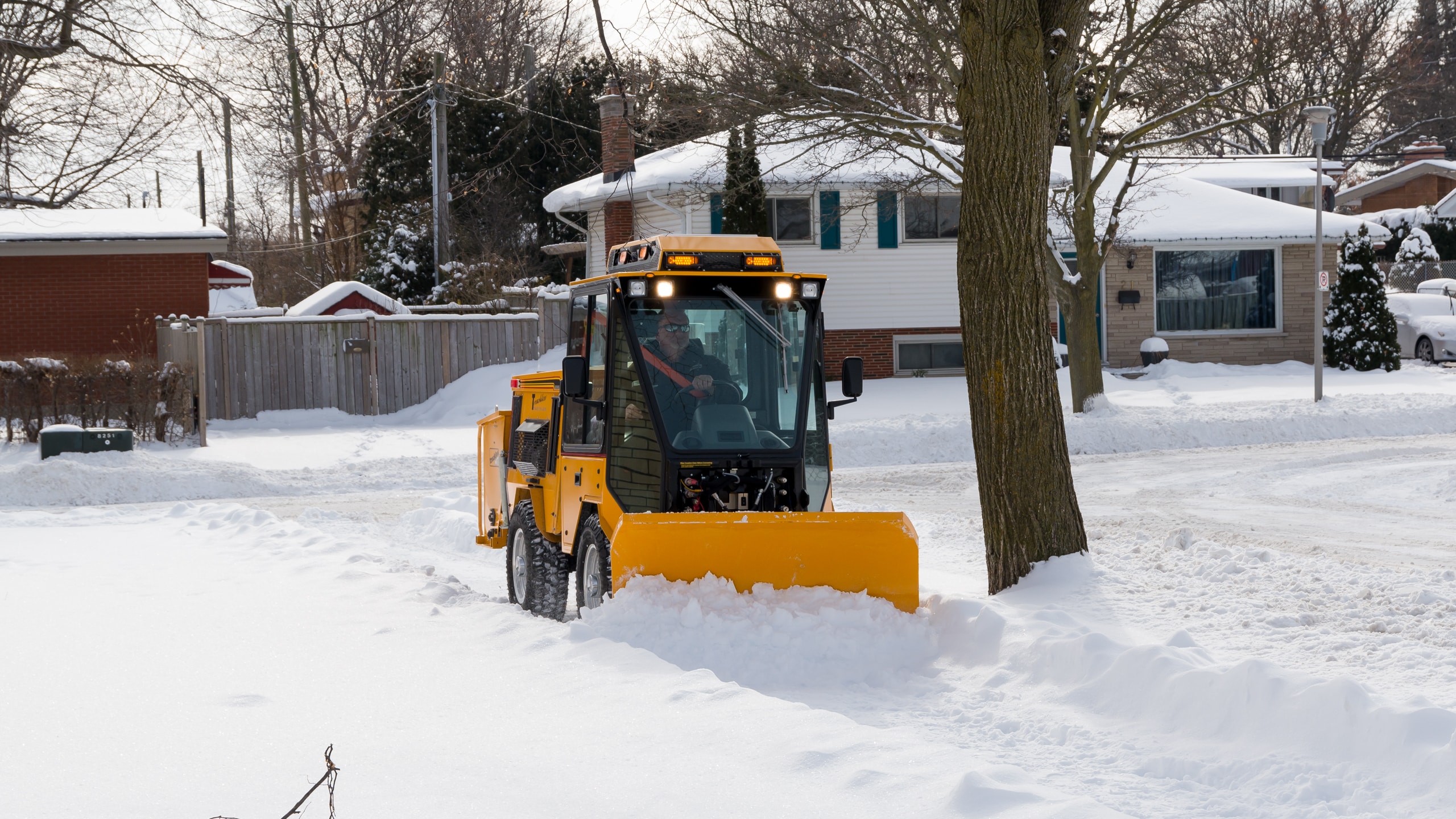

Sidewalk Tractor Double Trip Plow
Click to see example

The dual action trip system provides a smoother trip than conventional trip-edge plows and does not require the operator to stop or slow down for the mouldboard and cutting edge to return to the proper position.

Specifications

Cutting edge ½" x 6" hardened steel
Angling 30° left or right
Cylinders 2 single acting
Mouldboard trip springs 2
Cutting edge trip springs 2
Model Length Width Height Weight
Double Trip Plow 49"
1244mm
60"
1524mm
32"
812mm
700lbs
317kg

*Measurements are approximate.*

*For detailed tender specifications, contact Trackless Vehicles sales department.*
