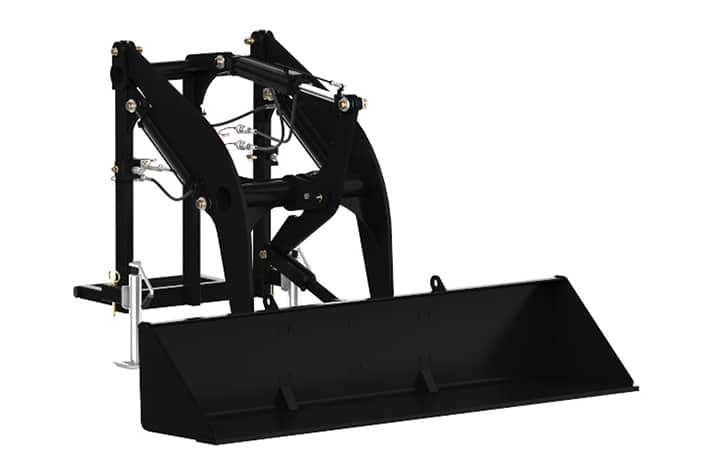

The Trackless Front End Loader attachment is ideal for various jobs required by public works departments or grounds maintenance departments. When operating on grassy lawns, the loader coupled with the Trackless MT turf tires will not damage turf the way a skid steer can. Smooth, accurate control of the loader by way of the joystick combined with the articulated steering of the tractor allows the operator to manoeuvre with precision and place material exactly where required.
Before purchasing a skid steer loader or a small tractor/loader, consider the benefits and cost-savings of the Trackless Front End Loader. The ability to mount this attachment in approximately five minutes will save the operator time. When the work is completed, the operator can switch back to an alternative Trackless attachment.
The loader bucket is available with either a 49″ or 78″ bucket.
The bucket floor, back, and sides are constructed from ¼” plate steel. The steel thickness is doubled on the edges of the loader for additional strength.
Z bar linkage provides the geometry for the loader arm movement. The dimensions of the three hydraulic cylinders are 2 1/2″ x 12″. The lifting capacity of the attachment is 1200 pounds, and the total weight of the loader is 860 pounds. The maximum lifting height at dump level is 72″.
|Lifting Capacity||1,200lbs (544kg)|
|Bucket Size||1/3 cubic yard, 77″ wide, optional 49″|
|Lifting Height||72″ (1828mm)|
Weights & Dimensions
*Measurements are approximate.*
*For detailed tender specifications, contact Trackless Vehicles sales department.*
