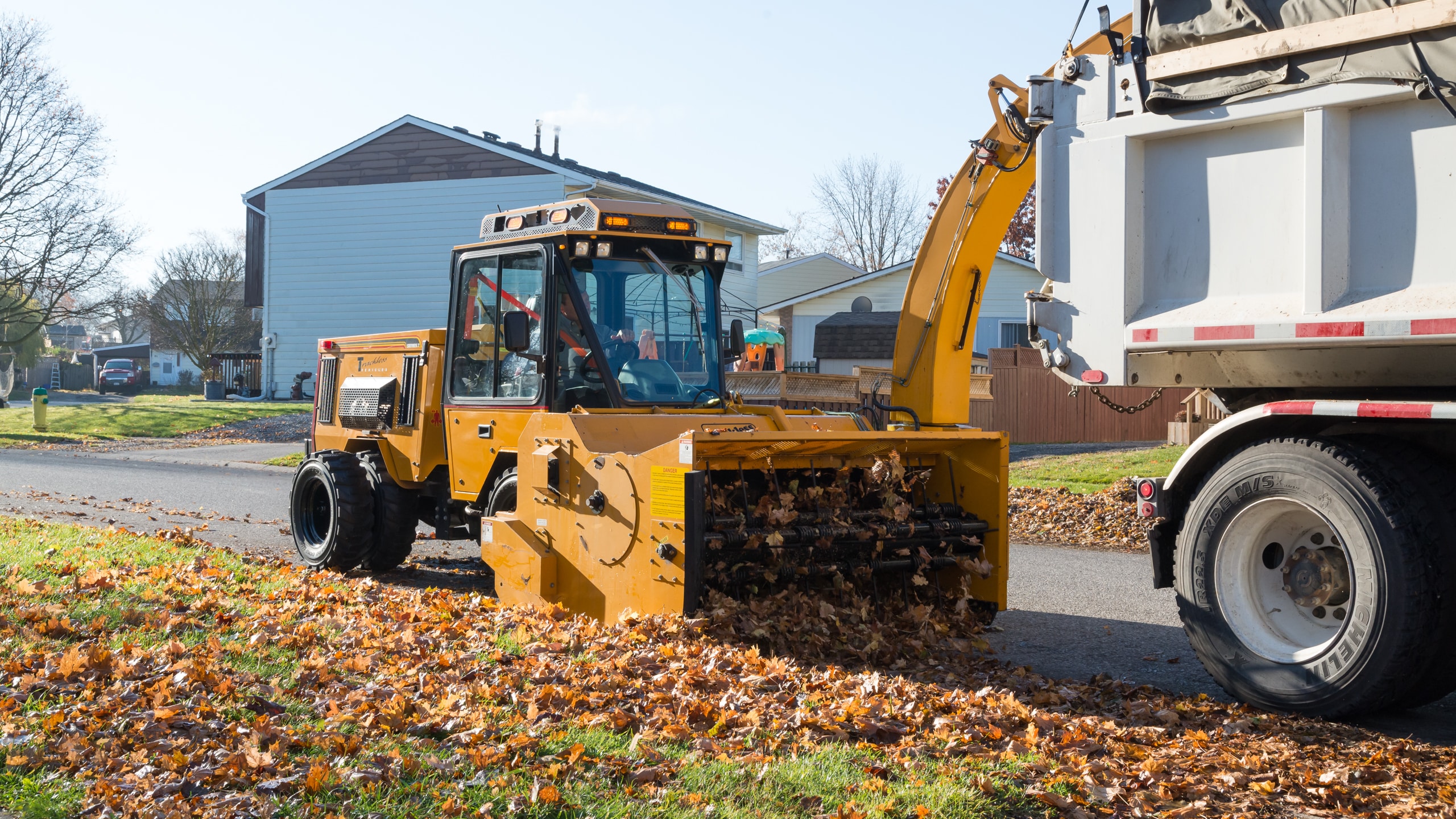

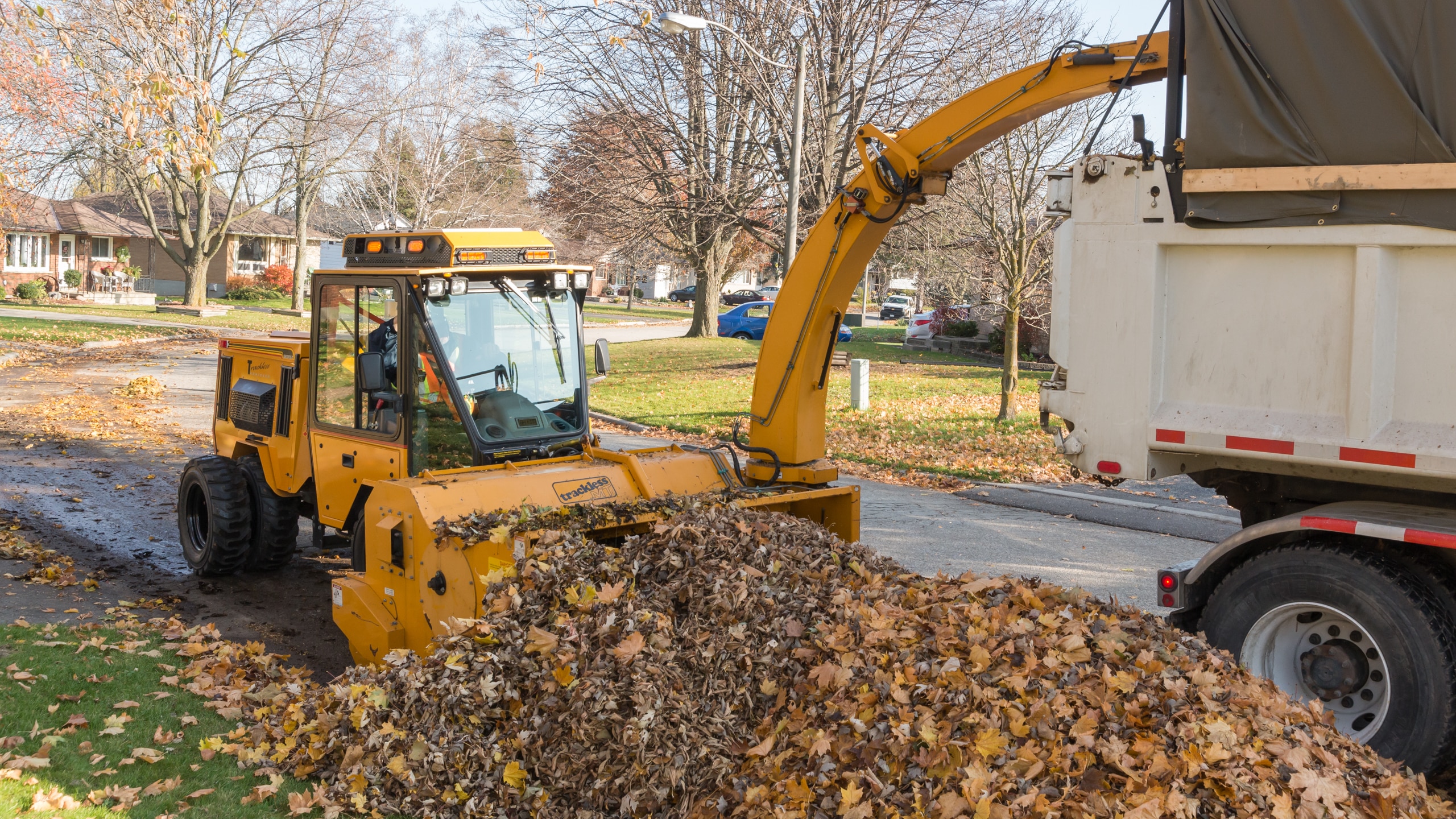

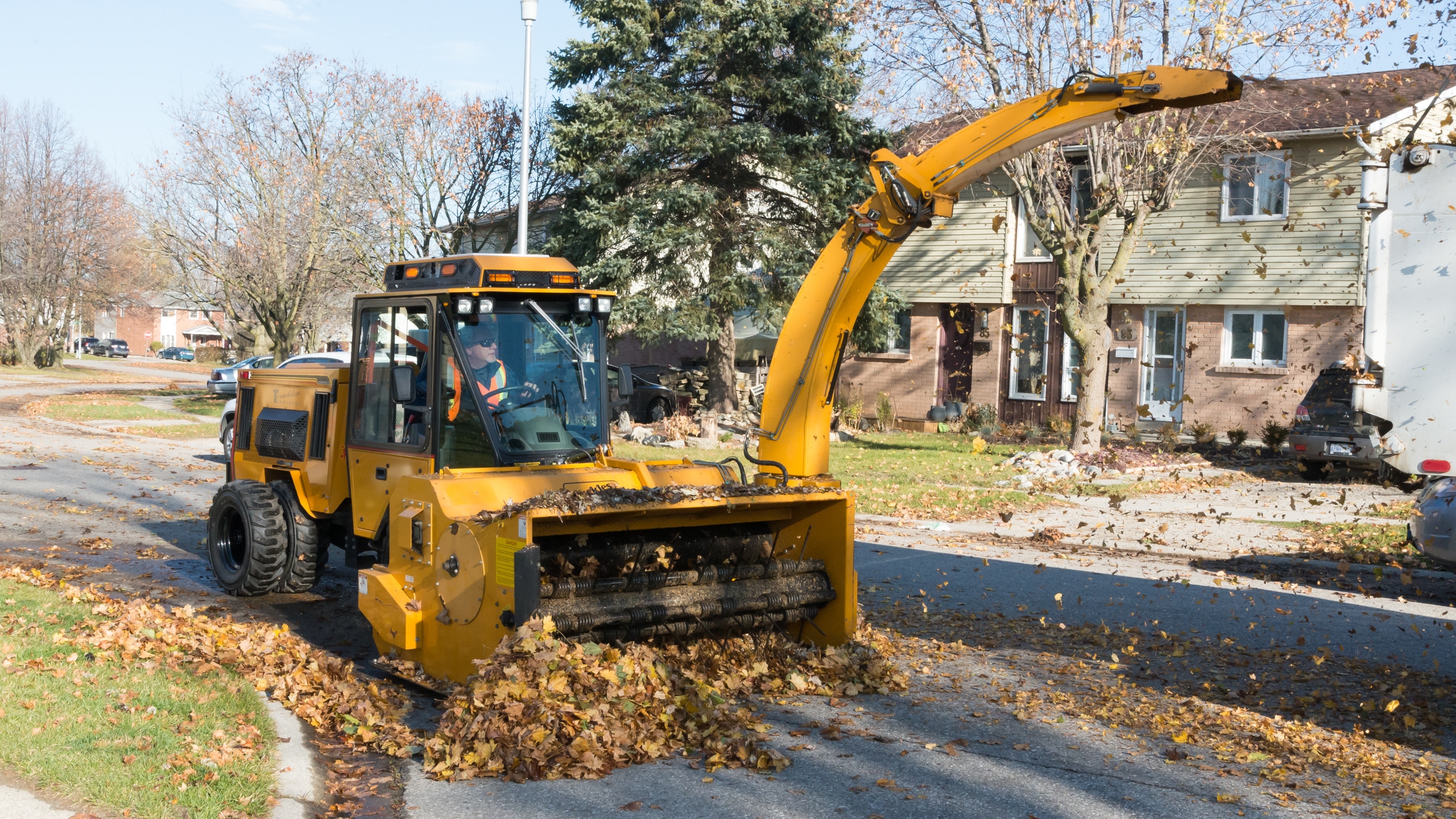

A municipal leaf collection program is a great service to offer residents, but it can also be an expensive venture. The Trackless Leaf Loader is an advanced and efficient leaf loading attachment whereby leaves are picked up curbside, mulched, and blown into a truck ready to be taken offsite. This system not only enhances productivity but also significantly reduces the cost associated with leaf collection and disposal.
Faster Pick Up
The Leaf Loader is capable of loading four trucks per hour or 100,000 pounds of leaves per day. Most customers claim to be three to four weeks ahead of schedule at the end of their leaf pickup season. This efficiency translates into considerable time savings and allows municipal workers to focus on other critical tasks sooner than expected.
Heavier Loads & Fewer Trips
Loose leaves can be reduced in volume by up to one-tenth simply by mulching. This means that far more material can fit into the truck, resulting in fewer trips to the collection center. Even though leaves represent up to 20% of municipal solid wastes, states such as New Jersey and many communities have banned leaf disposal through landfills or incineration. As others follow, mulching and/or composting will soon become mandatory as the first step in leaf disposal or recycling, making the Trackless Leaf Loader an environmentally responsible choice.
Reduce Labour, Increase Comfort
The enclosed heated cab of the Trackless MT provides the operator with a safe and comfortable working environment, protected from any inclement weather conditions. Rain, snow, or cold weather won’t affect your operator or the Leaf Loader’s ability to pick up leaves even if they are stuck or frozen to the pavement. This feature not only increases the comfort and safety of the operator but also ensures consistent performance regardless of weather conditions.
Additional Benefits
By investing in the Trackless Leaf Loader, municipalities can enhance their leaf collection programs with a focus on efficiency, cost-effectiveness, and environmental responsibility. The robust design and advanced features of the Leaf Loader make it a valuable addition to any municipal fleet, ensuring cleaner streets and happier residents.
- Related Attachments
- Power Angle Sweepers
- Leaf Loader
- Stump Grinder
- Debris Blower
Specifications
Throat Opening | 72″ (1828mm) x 35″ (889mm) |
Mulching Rotor | Full width with 24 knives |
Beater Bar Feed Roller | 18 pairs of spring base type tines |
Intermediate Feed Roller | 32 tines, eccentric rotation |
Cross Auger | 14 inch diameter |
Blower Fan | 32″ (813mm) x 7″ (178mm) with 6 replaceable paddles and knives |
Drive Protection | Torque limiting clutch on PTO shaft, over running clutch in gearbox |
Drive | PTO driven rotor and blower fan, hydraulic driven beater bar feed roller, intermediate feed roller, and cross auger |
Weights & Dimensions
Model | Length | Width | Height | Weight |
Leaf Loader | 78″ 1981mm |
112″ 2845mm |
111″ 2819mm |
2,675lbs 1,213kg |
*Measurements are approximate.*
*For detailed tender specifications, contact Trackless Vehicles sales department.*
