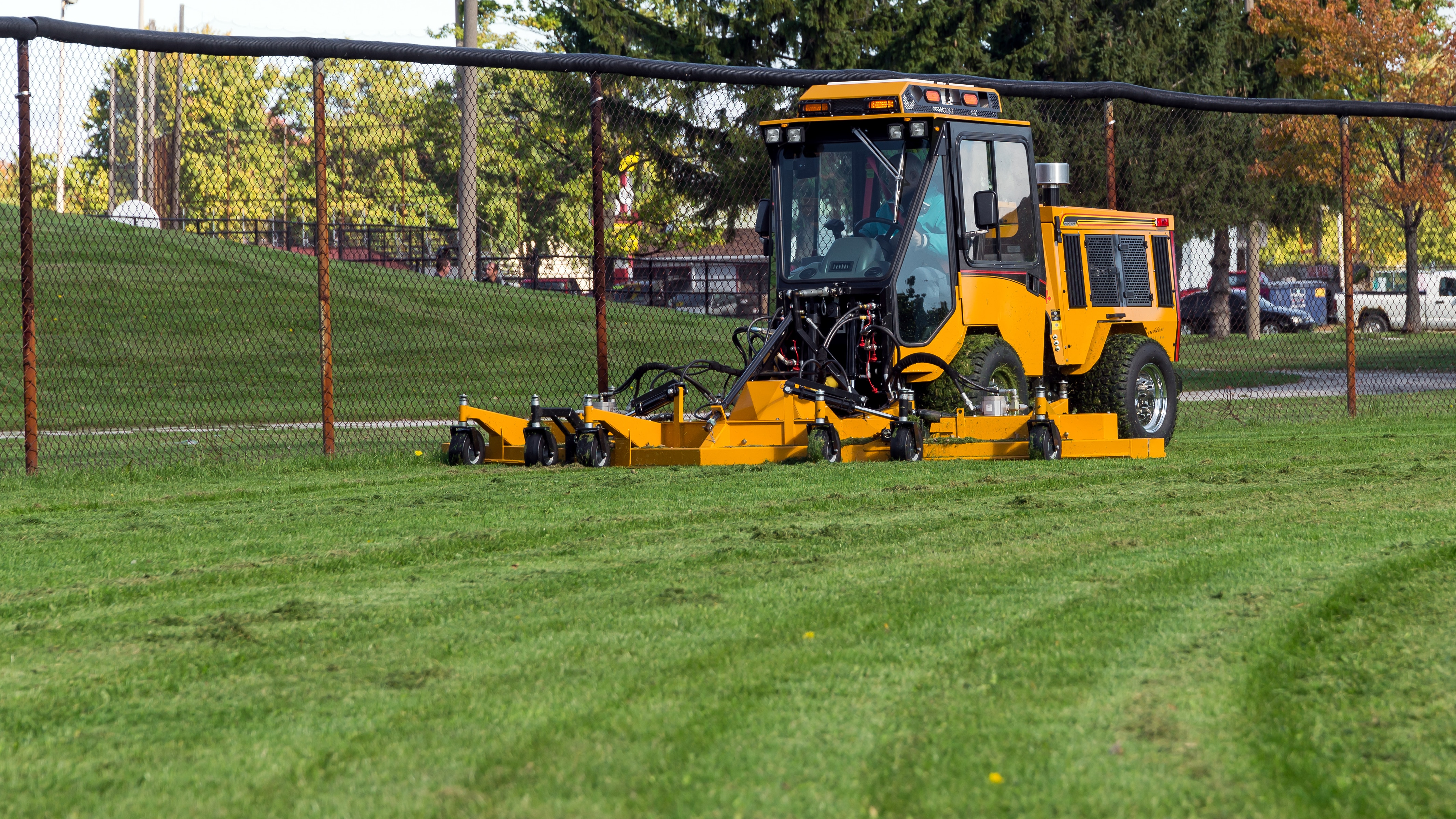

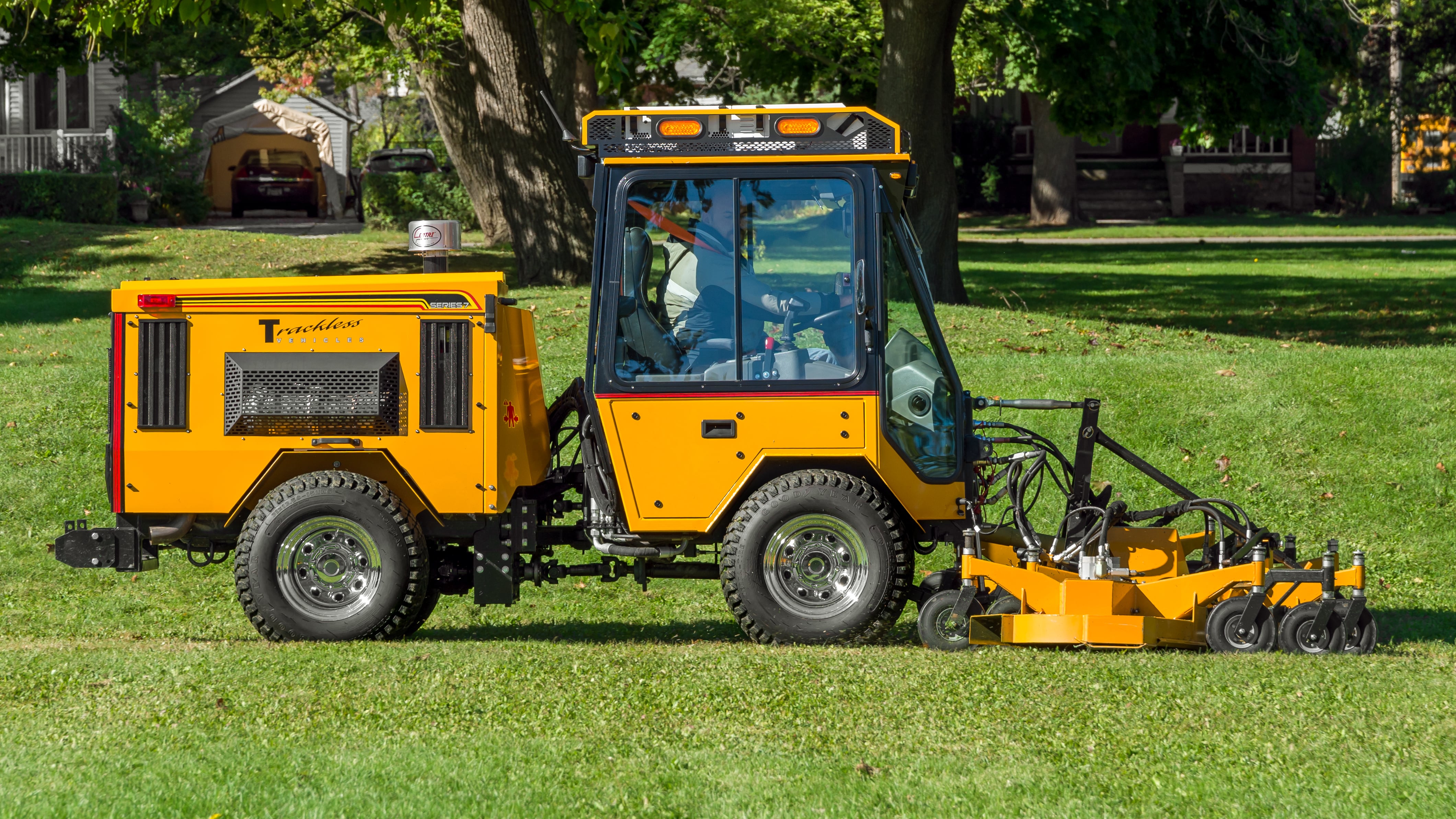

Getting the most out of your Trackless MT means putting it to work year-round. The spring and summer months offer an excellent opportunity to keep your MT productive by adding a Rotary Finishing Mower to your attachment portfolio. Our rotary mowers are ideally suited for grounds maintenance, parks, right-of-way mowing, municipal jobs or any other wide area green space. Since our rotary mowers mount to the front of the tractor, the MT’s articulated steering gives the operator precise control in close trimming conditions providing superior visibility, safety and productivity. The hydrostatic transmission allows the ground speed to be adjusted easily to match mowing conditions. The operator may also activate the hydrostatic lock, which functions the same as cruise control, except it does not compensate when going up or down a hill.
6′ Rotary Mower
The Trackless 6′ Rotary Finishing Mower is designed for close trimming on both sides with a full-width rear discharge. Four large gauge wheels and a flexible attaching frame allow accurate cutting on rolling ground. Due to the MT7’s hydrostatic transmission, the operator can maintain the maximum speed of cutting in various cutting conditions by simply easing up on the foot pedal in heavier grass or depressing the pedal further for a faster ground speed where the grass is shorter. The articulated steering gives the operator precise control for trimming.
10′ and 14′ Rotary Mowers
The 10′ and 14′ Rotary Finishing Mower was designed to drastically cut down mowing time on large areas such as campuses and parks. Uneven terrain requires flexibility in mowers to avoid scalping. Trackless solved this problem with a three-section, front-mounted mower comprised of a 72-inch three-spindle, PTO-driven center section with a hinged hydraulic-driven wing on each side. Separate valves control each hydraulic motor and lift cylinder. The MT7 has a built-in hydraulic system to power the right and left wings. Safety switches shut off the wings automatically when raised. For side slope cutting, axle extensions and terra grip turf tires are available.
- Related Attachments
- Boom Flail Mower
- Front Flail Mower
- Water Tanks
Specifications – Rotary Finishing Mower
Deck | 72″ (1828mm) x 3/16” plate, rear discharge |
Spindles | 3 – 7 x Timken bearings, greaseable |
Blades | 3 – 7 x 25″ x 2½” x ¼” high lift |
Casters | 4 – 10 swivel with 4″ x 10″ pneumatic tires |
Drive | PTO to right angle gear box, 2 V-belts |
Cutting Heights | 1½” to 4″ in ½” increments |
Cutting Tip Speed | 18,500 f.p.m. @ 2,200 engine r.p.m. |
Wings | 24″ (609mm) or 48″ (1219mm) |
Caster | 1 x 4″ x 10″ pneumatic on 24″ wing; 3 on 48″ wing |
Roller | 1 gauge on 24″ wing only |
Lift Cylinder | Hydraulic x 2″ x 8″ |
Hinge | Compound – 110° ARC |
Specifications – Progressive Turf Mower
Deck | Main deck is PTO driven, each wing is hydraulic-driven |
Deck Construction | 3/16″ steel plate deck construction |
Cutting Height | 1 1/2″ to 5″ cutting height |
Wings | Automatic hydraulic shut-off valves when wings are lifted |
Cutting Blades | 7 cutting blades |
Wheels | Wheels are solid urethane and puncture-proof |
Rollers | 2 anti-scalp rollers on centre deck |
Weights & Dimensions
Model | Length | Width | Height | Weight |
6′ Rotary | 81″ 2057mm |
79″ 2006mm |
43″ 1092mm |
962lbs 436kg |
10′ Rotary | 81″ 2057mm |
128″ 3251mm |
43″ 1092mm |
1500lbs 680kg |
14′ Rotary | 81″ 2057mm |
176″ 4470mm |
43″ 1092mm |
1656lbs 751kg |
*Measurements are approximate.*
*For detailed tender specifications, contact Trackless Vehicles sales department.*
