Trackless MT5: 1988 – 2007
The Trackless MT Series V (MT5) diesel is the fifth generation of municipal tractors designed and manufactured by Trackless Vehicles. Production of the MT5 began in 1988 and ended in 2007, as the MT6 was introduced.
The MT Series V Power Team consists of North America’s toughest, most durable and widely-used drive train components to ensure years of trouble-free service. A Cummins 4BT3.9 diesel engine, Dana 60 axles, Eaton 33 hydrostatic and Twin Disc clutch form an unbeatable Trackless MT.
MT5 Sales Media
MT5 Promotional Video
MT5 Brochure
MT5 Specifications
ENGINE |
|||
| Cummins Model Displacement Horsepower Torque |
4BT3.9 Diesel 3.9L (239.3 cubic inch) 110 BHP @ 2,500 RPM 239 lb-ft @ 1,500 RPM |
std | |
| Equipped with cold start aid, block heater | std | ||
| Donaldson air cleaner and pre-cleaner | std | ||
| 61 amp alternator. | std | ||
P.T.O. |
|||
| Front PTO | 13/8” spline, 540 RPM | std | |
| Twin Disc over center clutch with electric over hydraulic actuation | std | ||
| Reduction box 4:1 | std | ||
| Rear PTO | 13/8” spline, 540 RPM | opt | |
HITCHES |
|||
| Front | Trackless quick hitch with dual lift cylinders | std | |
| Rear | Category 1, 3-point hitch with dual lift cylinders | opt | |
POWERTRAIN |
|||
| Eaton series 33 hydrostatic and Trackless 2-speed mechanical gives infinitely variable speeds forward and reverse in two speed ranges. | std | ||
| Foot controlled for convenience. | std | ||
| Hydrostatic transmission driven at engine speed. | std | ||
| Dana Model 60 full float with Track-Lok differentials, front and rear. Capacity 5900 lbs. per axle. | std | ||
| Deep reduction. | opt | ||
HYDRAULIC SYSTEMS |
|||
| 18 g.p.m. engine driven gear pump. | std | ||
| Priority valve directs portion of oil to steering, remainder goes to 5 spool valve front lift cylinders, rear 3 pt. hitch lift cylinders, 2 other functions plus a power valve for remote hydraulic driven equipment. |
std | ||
BRAKING SYSTEMS |
|||
| 12” x 2½” hydraulic on all 4 wheels. | std | ||
| Parking brake is mechanical on front brake shoes. | std | ||
| Warning buzzer denotes “ON” when engine is running. | std | ||
STEERING |
|||
| Articulated hydraulic steering with tilt steering wheel, hazard button and turn signal lever are mounted on steering column |
std | ||
FUEL CAPACITY |
|||
| 72 litres, 19 US gallons | std | ||
SPEEDS |
|||
| Low range | 0 to 12 km (8 mph) | std | |
| High range | 0 to 30 km (19 mph) | std | |
| Deep low range | 0 to 0.6 mph | opt | |
LIGHTS |
||||
| 2 adjustable Halogen headlights. | std | |||
| 1 adjustable Halogen back-up light. | std | |||
| 2 tail-lights with turn signals. | std | |||
| 4 turn signal markers; 4-way flashers. | std | |||
| Revolving sealed beam flasher available in blue or amber. | std | |||
TIRES & WHEELS |
||||
| Heavy duty 8 bolt 6½” B.C. | 15” and 16½” diameter. | std | ||
| Winter: 31 x 10.00 x 16.5 – 6 ply. | opt | |||
| Summer: 32 x 13.50 x 15.0 – 4 ply. | opt | |||
| Duals: 31 x 10.00 x 16.5 – 6 ply. | opt | |||
FEATURES |
||
| Certified ROPS type meets J1040-C specifications. | std | |
| Steel roof with rain gutters | std | |
| Murphy automatic safety shut-down control for low oil pressure and high water temperature. Tachometer with hourmeter, water temperature, oil pressure, volt meter, hydraulic oil temperature, fuel gauge. |
std | |
| Internally illuminated. | std | |
| Rocker type illuminated switches in overhead type console. | std | |
| One unused auxiliary switch. | std | |
| One man type with 6 tinted safety glass windows. | std | |
| Two side sliding windows. | std | |
| Seat, deluxe cloth covered torsion type, with 4 adjustment levers plus weight adjustment. | std | |
| Horn | std | |
| Heavy duty heater-defroster. | std | |
| 2-speed pantograph wiper, windshield washer. | std | |
| Inside rear view mirror. | std | |
| Dome light. | std | |
| Seatbelt. | std | |
| Sound deadening lining. | std | |
| Removable door and side panel. | std | |
| Convenient controls. | std | |
| AM-FM radio. | std | |
| Transmission driven, 12 g.p.m. gear pump and valve for extra auxiliary equipment. | opt | |
| Air conditioning. | opt | |
| Back-up alarm horn. | opt | |
| Rear 3 pt. hitch, cat. 1. | opt | |
| 540 r.p.m rear PTO. | opt | |
| Outside mirrors. | opt | |
| Deep low transfer case. | opt | |
| Air ride seat. | opt | |
| Roof light and A/C branch guards. | opt | |
| Wheel Base | 76.5″ |
| Length, less Liftarms | 146.5″ |
| Height, Top of Cab | 78.5″ |
| Width with single loader lug tires | 49.5″ |
| Weight | 5360 lbs |
MT5 Training and Attachment Videos
MT5 Tractor

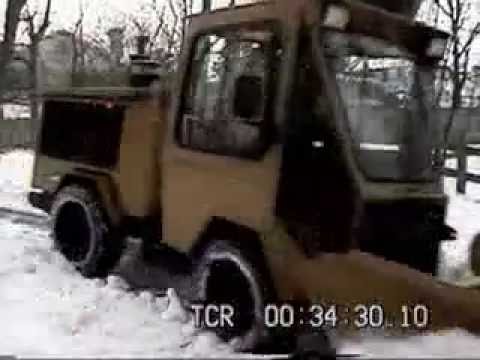

V Plow

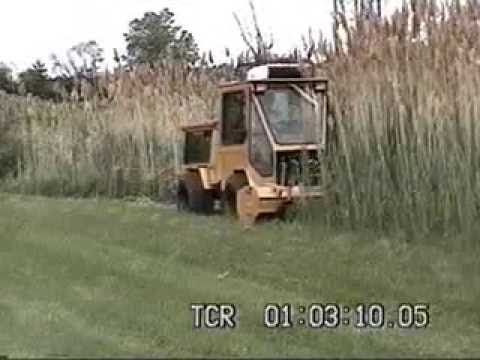

Front Flail Mower

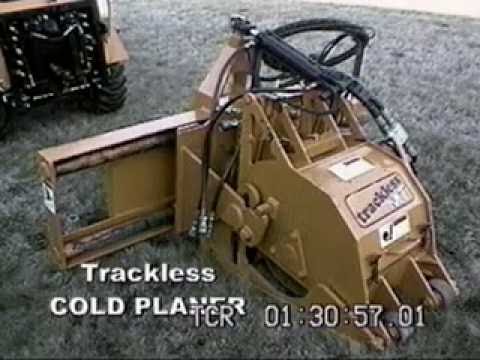

Asphalt Cold Planer
Snow Blower
Salt & Sand Spreader
Boom Flail Mower
Angle Blade
Power Angle Sweeper

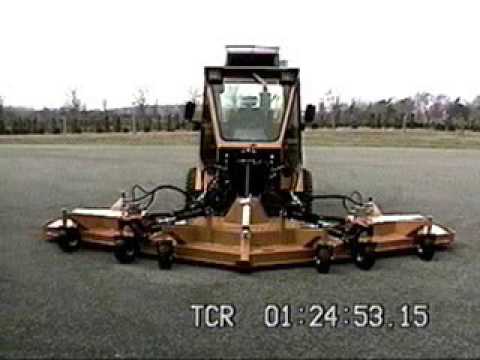

Rotary Mower
